Cnc lathe

Hankook 9NC x 5000 (Year 2012)

Hankook Protec 9NC x 5000 CNC Lathe with Fanuc 32i Control and large spindle bore.

MACHINE CONSTRUCTION & FEATURES

 Heavy One Piece Cast Iron Bed Construction
 Heavy Duty Hardened & Ground Solid Slideways
 2 Step manual Gear Change

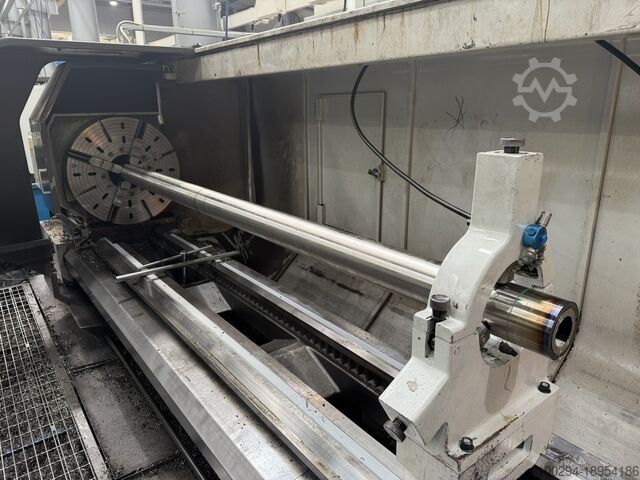

 Heavy Duty Tailstock

MACHINE CAPACITIES
Swing Over Bed Ø 950 mm
Swing Over Carriage Ø 630 mm
Chuck Size Dia. Ø 32”
Distance Between Centres 5000 mm
Load Capacity Between Centres 5000 Kgs

SPINDLE
Speed 2 -630 Rpm
Spindle Bore Ø 254 mm
Spindle Nose A2-15”
Speed Range Manual 2 Step
Centre taper MT #6

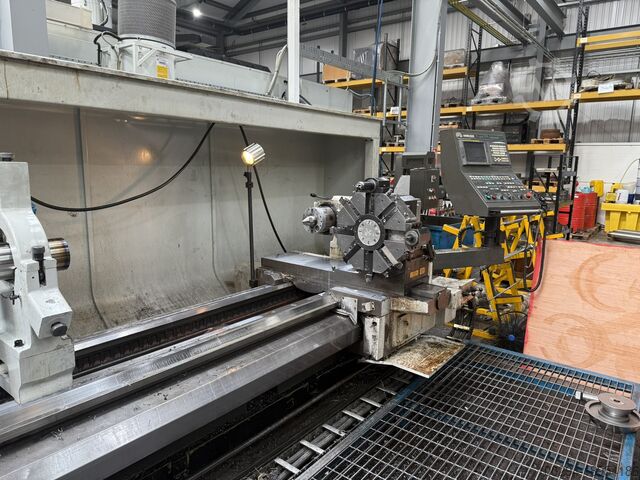

Carriage Toolpost Automatic V8
Cjdpfxjwcq Tme Alyjgt
Tool Size 32 x 32 mm
X Axis Travel 535 mm
Z Axis Travel 4845 mm
X Axis Rapid 4 M/min
Z Axis Rapid 6 M/min

TAILSTOCK
Quill Diameter Ø 180mm
Spindle Taper MT #6
Max Quill Travel 250 mm

BED
Width 630 mm
Length 6715 mm

MOTORS
Spindle 30/37 Kw
Feed X 1.8 Kw
Z 4.2 Kw


POWER SUPPLY
Electrical Supply 415V, 3Ph, 50Hz

DIMENSIONS & WEIGHT
Length 7470 mm
Width 2205 mm
Height 1890 mm
Weight 10280 Kgs

STANDARD MACHINE FEATURES
• Fanuc 32i-A CNC Controller • Centre MT #6
• 4 Jaw Independent chuck • Automatic Spindle Shifting
• Built in Live Tailstock Spindle
• Coolant System • 2 Speed Tailstock Spindle
• Work Light • Main Drive Motor & Elect equipment
• Centre Sleeve • Chuck Cover

Full Rear Guard 5000 between Centres
4-Jaw Independent Chuck & Flange Φ32" (Bore Ø254mm)
4-Jaw Independent Chuck & Flange Φ32" (Bore Ø254mm)
Steady Rest(Roller Jaw) Φ250mm - Φ450mm
Steady Rest (Roller Jaw) Φ450mm - Φ650mm
Live Centre MT #6
Automatic Index Turret Electric V8 in lieu of manual H-4
3 Off OD Tool Holders
3 Off Boring Tool Holders Φ63mm
2 Off Facing Tool Holders
Boring Bar Device Ø 150mm (Bar Excluded)
Chip Conveyor 5000 Mm
Transformer CE Specification
Spindle Motor Upgrade 30/37 Kw
Fanuc Option A (as detailed below)
1st Spindle Orientation Dynamic Graphic Display Continuous Threading
Custom Macro B Extended Part Program Edit Tape Memory 320M
Inch/Metric Conversion Manual Guide i Playback
Programmable Data Input Run Hours & Parts Counter Tool Offsets 32 Pairs
Variable Lead Threading Graphic Function Spindle Positioning
Program Restart External Data Input
