CNC Lathe

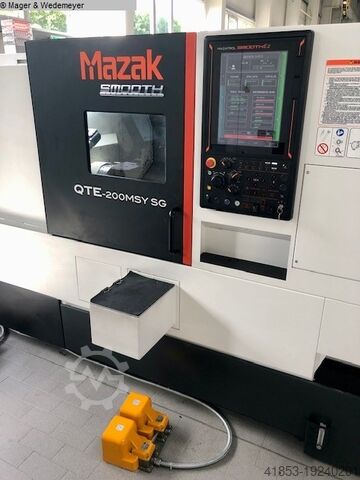

MAZAK QTE-200MSY SG

turning diameter 340 mm
turning length 575 mm
control Mazatrol SmoothEZ
max. swing diameter over bed 695 mm
Standard machining diameter 235 mm
bar material dia. max. 65 mm
x-axis 215 mm
rapid traverse X-axis 30 m/min
y-axis 100 mm
rapid traverse Y-axis 10 m/min
z-axis 605 mm
rapid traverse Z-axis 30 m/min
turning speeds 35 - 5000 U/min
spindle nose A2-6
spindle bore 76 mm
Motor output (40%ED) 15 KW
11 KW
Max. Torque 167 Nm
turning speeds 35 - 6000 U/min
spindle nose A2-5
Motor output (40%ED) ca. 7,5 KW
Power (continuous operation) 5,5 KW
Max. Torque 53 Nm
Milling spindle speeds ( driven tools) 20 - 4500 1/min
torque on milling spindle max: 47 Nm
power capacity - milling spindle 5,5 (40% ED) kW
Milling spindle power 3,7 kW
Numbers of tools 12 (angetrieben)
Tool cross section (outside) 25 qmm
Boring bar- Ø 40 mm
Drill- Ø 20 mm
Mill- Ø 20 mm
Tap- Ø M20
coolant tank 225 l
Chuck diameter main spindle 8 ''
Chuck diameter counter spindle 6 ''
w-axis 585 mm
rapid travel W 30 m/min
c-axis 555
weight of the machine ca. 4,9 t
dimensions of the machine ca. 2,8 x 2 x 1,8 m
Special accessories:

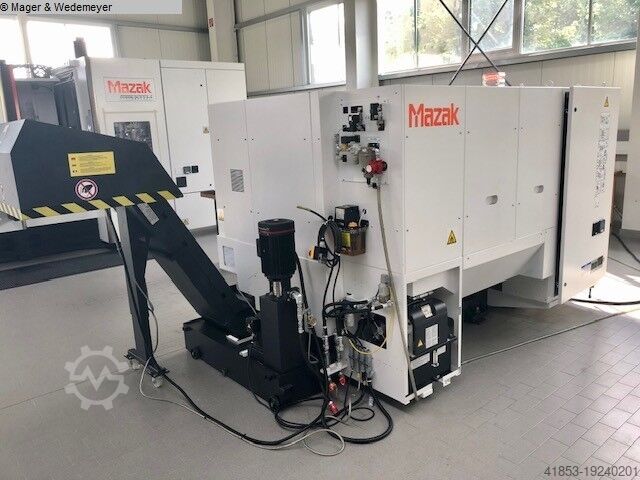

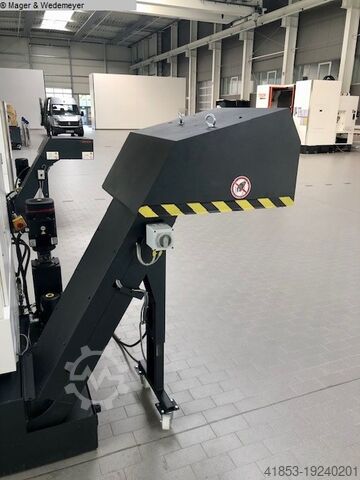

- Chip conveyor, hinged belt, side ejector
- Production package, this package includes
Preparation for bar feed
Automatic parts catcher (Ø:80mm x L:120mm x 2.5 kg)
15 bar high-pressure coolant system
Preparation for chip conveyor (lateral)
Signal light (3-colour LED), rectangular
C-axis counter spindle 0.0001°
Automatic tool eye
8" power chuck Kitag. BR08 & Cyl. SR1566C (HD1)

GENERAL MACHINE OPTIONS
Air blowing device on the chuck (counter spindle)
Transformer for the European market
Linear roller guides
SD MEMORY I/F(1P) + USB MEMORY I/F(1P)
1 x USB - Memory Interface (1 slot)
CE marking
Lhedpfowngklox Acysl
CE marking, metric, 50 Hz
Counter spindle positioning 0.0001 degrees without C-axis
Tool turret with 12 stations
Y-axis control
ADDITIONAL PROCESS SOFTWARE
Smooth restart function / restart mode
Set of manuals in electronic form on CD
Main spindle motor AC 15 kW (20 hp)
2nd spindle motor AC 7.5kW (20 hp) Main spindle motor AC 7.5kW
MAIN SPINDLE
C-axis main spindle Input accuracy (contour/index) 0.0001°
Mazak standard colour (F white(fine)/S black)
Automatic switch-off via circuit breaker trip
Double foot switch
Hydraulic pressure interlock
RFID door interlock
Safety foot switch with locking mechanism
Safety measures according to worldwide standard
Work area lighting
Complete coolant system
Automatic opening/closing of chuck jaws (main and counter spindle)
Feedback of the chuck status (main and counter spindle)
Feedback of the chuck status via sensors.
8" power chuck
6" power chuck (counter spindle)
Absolute positioning system
Synchronous tapping with milling spindle
Relocation Detector
NC control Mazatrol SmoothEz
15" colour Lcd (touch screen)
User macro (common variables: 600 pairs)
EIA/ISO package
EIA/ISO - input function
EIA/ISO - additional functions
Bolt line interpolation
3D tool compensation
Workpiece coordinate rotation
Geometric function
Scaling
External data input/output
Tapping function (G33)
Reverse feed rate G93
G37 Tool length measurement
Polar coordinate input (EIA)
Optional stop
Additional workpiece coordinate systems 300 pieces
User macro (600 variables)
Mazak tapping/drilling cycle EIA/ISO - input function Scaling External data
input/output Thr...
