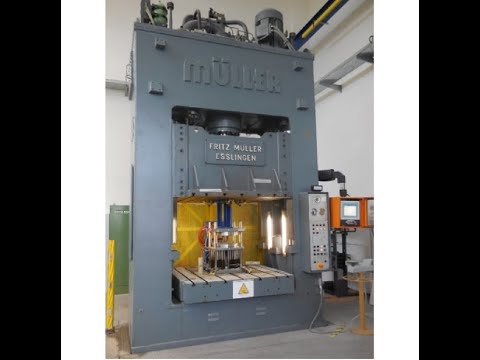

Double Column Drawing Press -Hydr.

MUELLER ZE 315-16.24.1 (CE)

pressure 315 t
distance between columns 1750 mm
stroke 700 mm
distance table/ram, max. stroke up, adjustment up 1200 mm
Kodpfx Asvuukbsaasnd
table surface area 1600 x 1500 mm
pressure of drawing cushion in table 125 t
stroke of drawing cushion in table 200 mm
die cushion area 1200 x 1400 mm
table height over floor 750 mm
ram surface 1640 x 1500 mm
power requirement 55,0 + 11,0 kW
weight 29,5 t
dimensions (WxDxH) 3,2 x 4,5 x 5,8 m
Height above floor 5,1 m
year of manufacture 1983 - 2007: modernization of electrical control (Siemens S 7)
permitted for manual put-in according to the CE Regulations
with oil-hydraulic drive, hydraulic drawing cushion in table, hydraulic cutting impact cushioning
can be offered without putting into operation, with putting into operation in given condition or alternatively with new control Siemens S 7-1500 F
