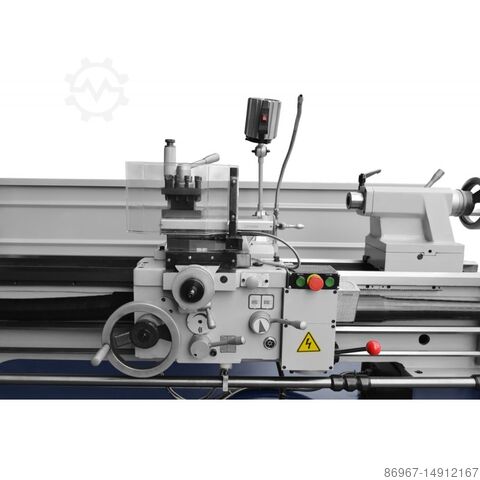

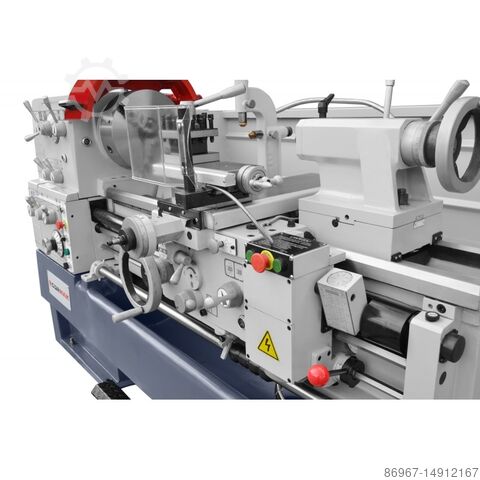

460x1500 Universal Lathe

CORMAK Tokarka uniwersalna 460x1500

This lathe can be used for many tasks such as internal and external surfaces turning, tapers turning, buffing, modular and DP threading, drilling and internal broaching.

This series lathes can be used for many tasks such as internal and external surfaces turning, tapers turning, buffing, modular and DP threading, drilling and internal broaching
By default equipped with a 3 axes digital readout
Modern and precise spindle bearings
80 mm large spindle bore
Heavy bed made of cast iron, ground and inductively hardened
Gear wheels strengthened through hardening and precise grinding
Removable bridge allows for greater machining capabilities
Protection guards compliant with the newest regulations
Equipped with a foot mechanical brake
Possibility of equipping the lathe with a ruler for turning tapers

Technical data

Swing over bed


460 mm

Swing over cross slide


270 mm

Swing over gap bridge


690 mm

Turning length in gap bridge


165 mm

Centres distance


1500 mm

Bed


inductively hardened

Bed width


300 mm

Spindle bore diameter


80 mm

Spindle tip


D1-8

Spindle mount


MK7

Spindle speed


(12) 25–1700 rpm

Maximum tool dimensions


25×25 mm

Longitudinal feed range


(42) 0.031–1.7 mm/turn

Transverse feed range


(42) 0.014 – 0.784 mm/turn

Metric thread


(41) 0.1–14 mm

Inch thread


(60) 2–112 T.P.I.

Modular thread


0.1–7 M.P (34)

D.P. thread


4–112 D.P. (50)

Tailstock quill diameter


60 mm

Tailstock quill extension


130 mm

Tailstock quill tip


MK4

Digital readout

Ijdpfxsriczie Adijtb

in 3 axes

Main motor power


5.5 kW

Flood coolant pump power


0.1 kW

Dimensions


2750×1080×1370 mm

Net weight


1820 kg
