Double-column hydraulic press

RASTER ZEULENRODA (WALTER) WUP-S 60

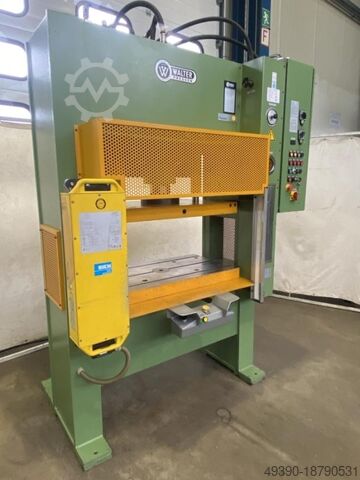

Double-column hydraulic press RASTER ZEULENRODA (WALTER) Type WUP-S 60

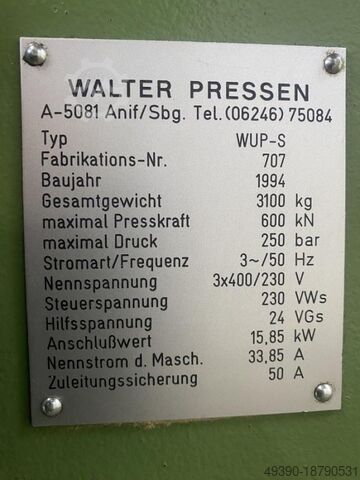

Mach. No. 707, built in 1994
Pressure capacity 60 tons
Column width 1090 mm
Side clearance 275 mm

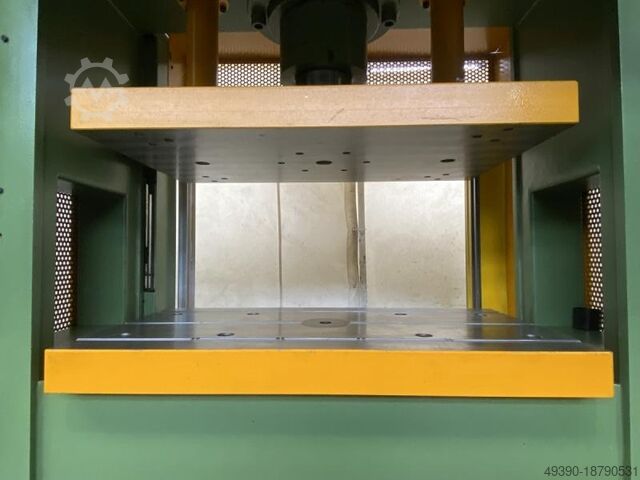

Ram surface 890 x 540 mm
Table surface 990 x 540 mm
Max. ram stroke 300 mm
Installation height 390 mm
Table height above floor 900 mm
Hydraulic operating pressure 250 bar
Rapid downward speed 47 mm/s
Rapid upward speed 75 mm/s
Working speed 15 mm/s
Return speed 37 mm/s
Motor power 15 kW (2 x 7.5 kW)
Power supply 400 volts, 50 Hz, 15.85 kW
- SICK light barrier, type LVS 600
- Manually adjustable limit switch cams for stroke limitation
Iodsv Srfdopfx Abgea

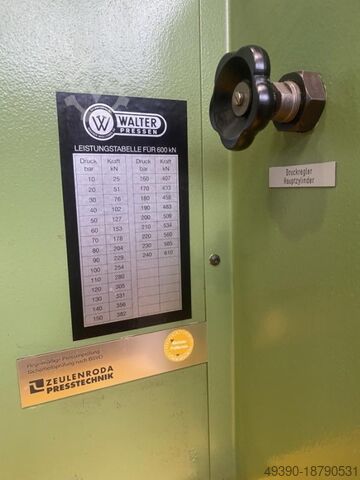

- Press force adjustment via handwheel
- Continuous press force holding time adjustment
- Two-hand operation on the machine
- Additional ram plate Guided by two lateral guide rods, Ø 50 mm
- Table top with 18 mm T-slots, slot spacing 185 mm
- Table top through hole Ø 100 with insert reduction to Ø 30 mm
- Ram plate with 40 mm bore and clamping screw
- Electrical cabinet on the side of the machine stand
- 3 monitored safety valves for the hydraulic system
- Accident prevention regulations for manual insertion work
- Electrical circuit diagram
Space requirement L x W x H 1900 x 1350 x 2570 mm
Weight 3.1 tons
Good condition
