Turning Automatic Lathe - swiss lathe

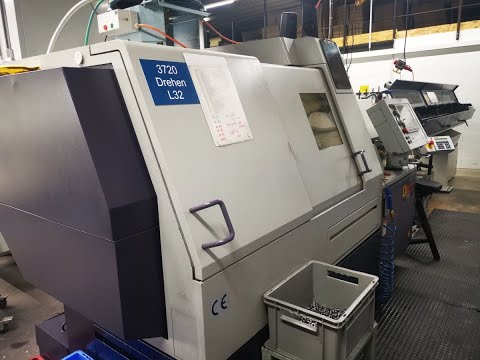

Citizen L32 VII

Machine-Details :
Stock-No. 1022-2405
Type of machine Turning Automatic Lathe - swiss lathe
Make CITIZEN
Type L32 VII
Year of manufacture 2003/2005
Type of control CNC
Storage location Monheim (Germany)
Country of origin Japan
Delivery time Immediately
Freight basis Ex warehouse, loaded on truck

Technical details :
Bsdpfxex A A R Ij Agbodk
working diameter max. 32 mm
spindle passage 36 mm
turning length 320 mm
Control MITSUBISHI MELDAS 635LC
travel max. (X1) 108 mm
travel max. (Y1) 275 mm
travel max. (Z1) 325 mm
travel max. (X3) 238 mm
travel max. (Z3) 410 mm
main spindle speeds: 200 - 8000 U/min
c-axis 0,001° deg.
Subspindle spindle speeds 200 - 7000 U/min
c-axis 0,001° deg.
rapid traverse 20 m/min
main drive 3,7 / 5,5 kW
Subspindle motor 1,5 / 2,2 kW
dimensions of machine 2,77 x 1,24 x 1,79 m
weight of the machine ca. 2850 kg

Additional information :
CNC Swiss-Type Lathe
First put into operation December 2005
The machine was used for a single shift and is in good condition with no maintenance backlog.

Equipment:
FMB Turbo 5-42/3200C bar loader, built 2004
High-pressure pump
Many collet chucks for main spindle
Various collets
Drive unit for synchronously driven guide bush
Synchronously driven guide bush
Drive unit for transversely driven spindle on linear support
Pick-up spindle
Collet chuck for pick-up spindle
Blow-out device for pick-up spindle
Five fixed tool holders on the rear
Workpiece removal device
Coolant tank
Central lubrication system
Door lock
Ejection device for workpieces with through holes
Machine documentation

The machine will be sold without tools and extraction system.
