Lathe-conventional-electronic

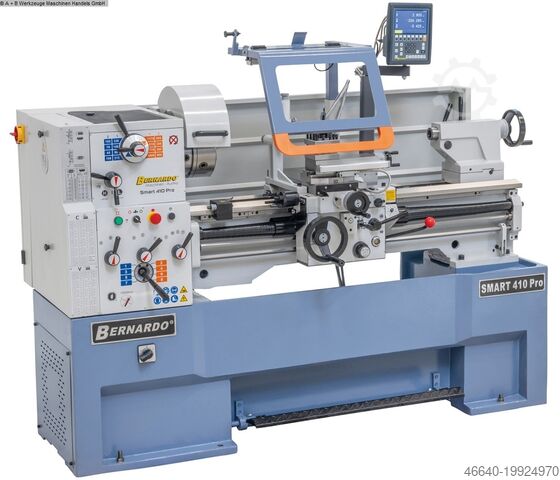

BERNARDO SMART 410-1500 PRO

turning length 1500 mm
turning diameter 420 mm
swing diameter over bed slide 255 mm
turning dia. in gap 580 mm
spindle bore 52.0 mm
turning speeds 45 - 1800 U/min
bed width 250 mm
spindle taper DIN 55029 D 1-6
taper in tailstock 4 MK
quill travel 140 mm
total power requirement 3.0 / 4.5 kW
weight of the machine ca. 1400 kg
range L-W-H 2570 x 900 x 1600 mm
Equipment:
- 3-axis digital display ES-12 V with LCD display
- 3-jaw chuck DK11-200 mm / D6
- Clamping disk 350 mm
- Fixed steady rest - passage diameter max. 135 mm
- Follow-on steady rest - passage diameter max. 65 mm
- Coolant system
- Quadruple tool holder
- Protective device for quadruple tool holder
- Micrometer longitudinal stop
- Slip clutch
- Turret stop with fine adjustment
- Thread gauge
- Motor with magnetic brake according to CE standard
- Foot pedal with brake function according to CE
- Initial filling with Shell Tellus 46
- LED machine light

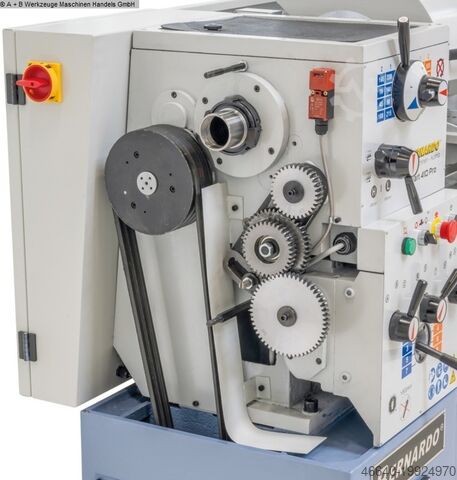

- Change gears
- Reduction sleeve
- 2 centering points
Gedpfx Aboxab Umjxjtt
- Chip back wall
- Operating tools
- Operating instructions
